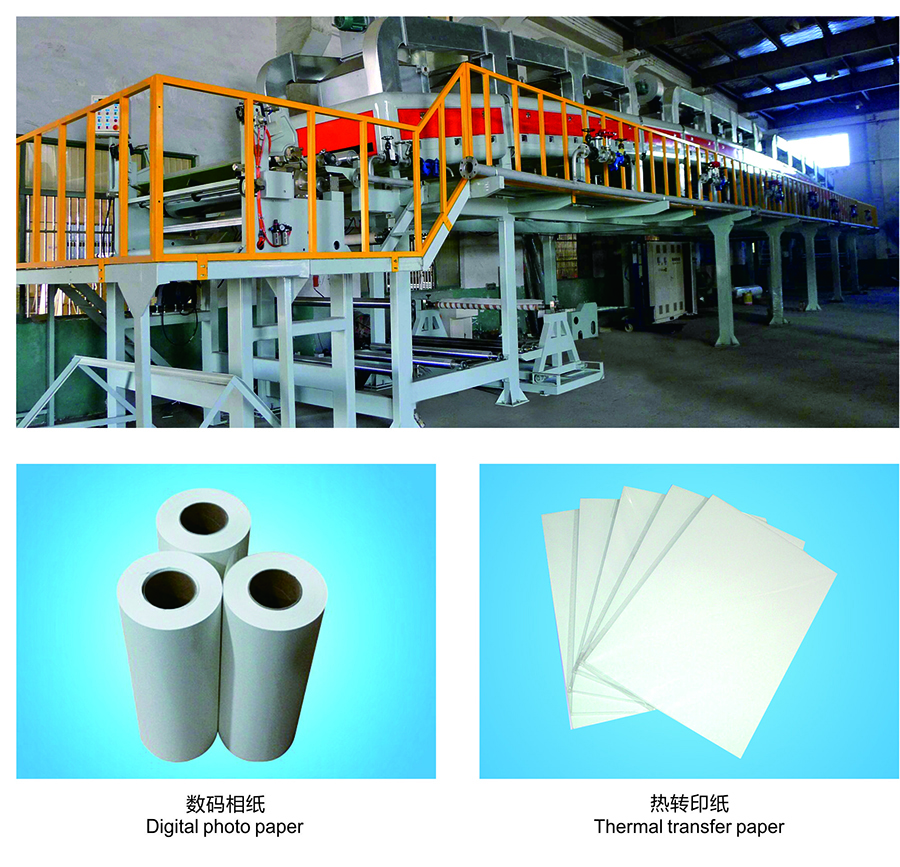

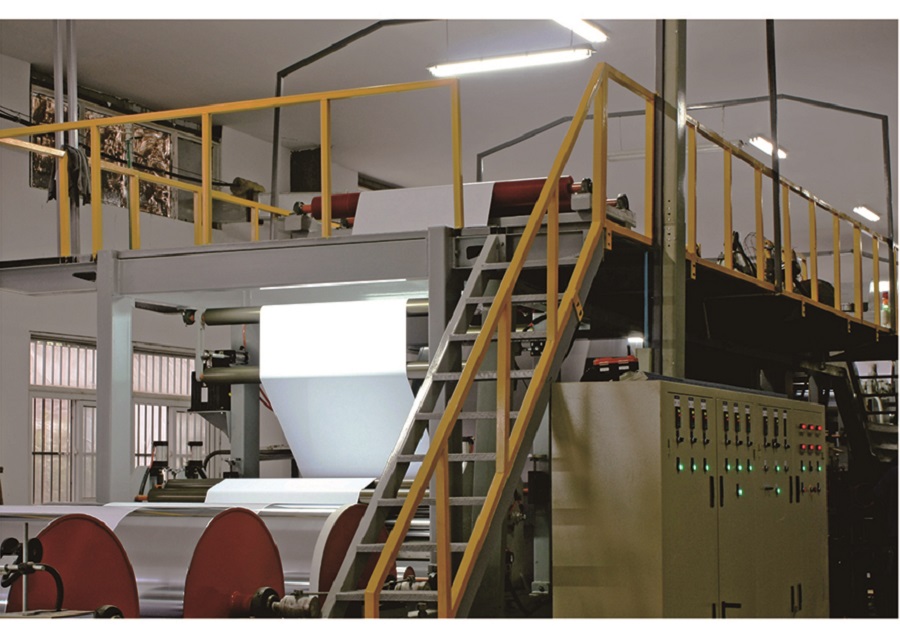

Coating machine for making series of digital consumable heat transfer paper, water transfer paper,photographic paper, pp paper, etc

Suitable for digital printing, coating treatment for applied.

  • Product description:

    1. Heavy unwinder and rewinder, operating stably, high rate of finished products.

    2.According to technology requires, we can choose different coating methods for coating, thus we can achieve accurate amount of coating.

    3.Have two ovens for choosing: traditional type(open from side) and open-box structure type ,can dry in low temperature ,environment-friendly and energy saving ,accurate temperature controlling .

    4.The whole machine has tension control device in each section to keep the paper running stably, without any wrinkle,

    rewinding orderly .

    5.According to technology requires, can choose wet-back system (put paper into water again), ironing system,etc.



    Main technological parameters:

    Coating width (customizable): 500~1800mm
    Base material: Paper ， gram weight 30~200gsm
    Coatings type: water based coatings，solid content 30~35%，viscosity 100~3000cps
    Machine speed: 10~100Meters per minute
    Coating thinckness: 12~30μm after drying
    Accuracy of coating ±0.0015mm
    Coating way: Gravure roller, Comma  roller, comma transfer, Air knife
    Drying temperature: 80~120℃
    Heating source: Electric/steam/thermal/hot blast stove
    Accuracy of tension control: ±0.15kg
    Edge uniformity of winding ±3mm
    Unwinding diameter of roll Maximum 1200mm
    Rewinding diameter of roll Maximum 1200mm
