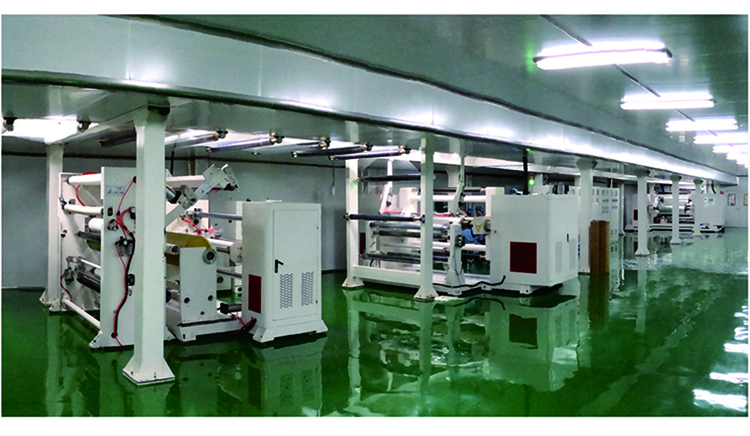

PET release film coating machine

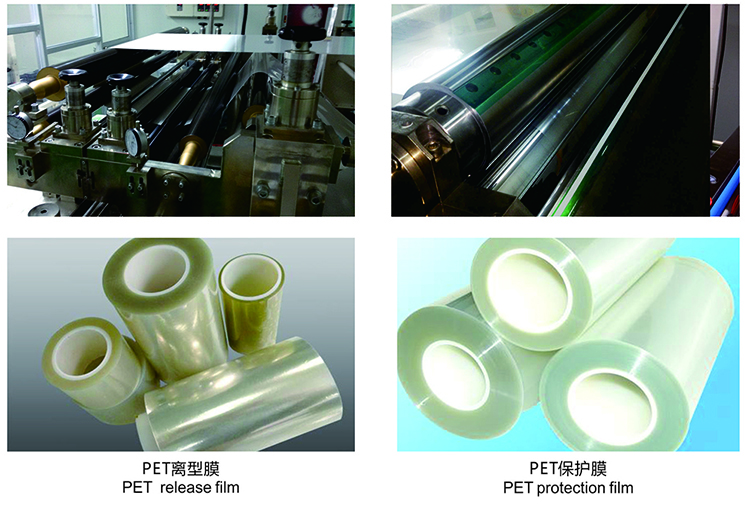

Suitable for producing PET electronic film and protection film
-
Product description
1.The combination of unwinder and rewinder with double structure can connect printing
material automatically,which brings great productivity .
2.According to technology requires, we can choose different coating methods for coating, thus we can achieve accurate amount of coating
3.The oven adopts open-box structure, easy to clean, have
good tightness, high degree of cleanliness, accurate
temperature controlling.
4.The whole machine ha tension control device in each section to keep the material running stably, without any wrinkle and scratch.
5.According to technology requires, the machine can rewind small roll-diameter ,bubble-free finished products .
Main technological parameters:
Coating width （Customizable）： 1000~2500mm Base material： PET film， thinckness 12~100μm Glue type: Water based/solvent based, acrylic adhesive,silica, rubber, silicon oil, solid contend 5~55%， viscosity 100~100000cps Machine speed （Customizable）： 10~200 Meters per minute Coating amount： 5~30μm after drying Drying temperature： 60~150℃ Heating source： Electric, steam, thermal oil, prepared by user Accuracy of coating： ±0.0015mm Coating way: Gravure roller, Precision ceramic mesh roller Accuracy of tension control: ±0.15kg Edge uniformity of winding roll ±3mm Unwinding roll diameter: Maximum 800mm Rewinding roll diameter Maximum 800mm
